| SMT PCB IR Curing Oven Machine
The I.C.T IR Curing Oven Machine is designed for rapid, uniform curing of adhesives, coatings, and anti-corrosion paints in SMT PCB production lines. Its top-zone IR heating delivers high thermal efficiency while saving energy, and PID intelligent control ensures temperature stability within ±5℃. The oven features a modular IR system for easy maintenance and long-term reliability. With independent cooling, adjustable conveyor speed, and a zero-gas design with motorized furnace cover, the system provides safe and stable operation. Suitable for SMD assembly, PCB curing, and high-volume SMT production, it ensures consistent, high-quality curing results across boards of different sizes and materials.
| Feature of IR Curing Oven Machine

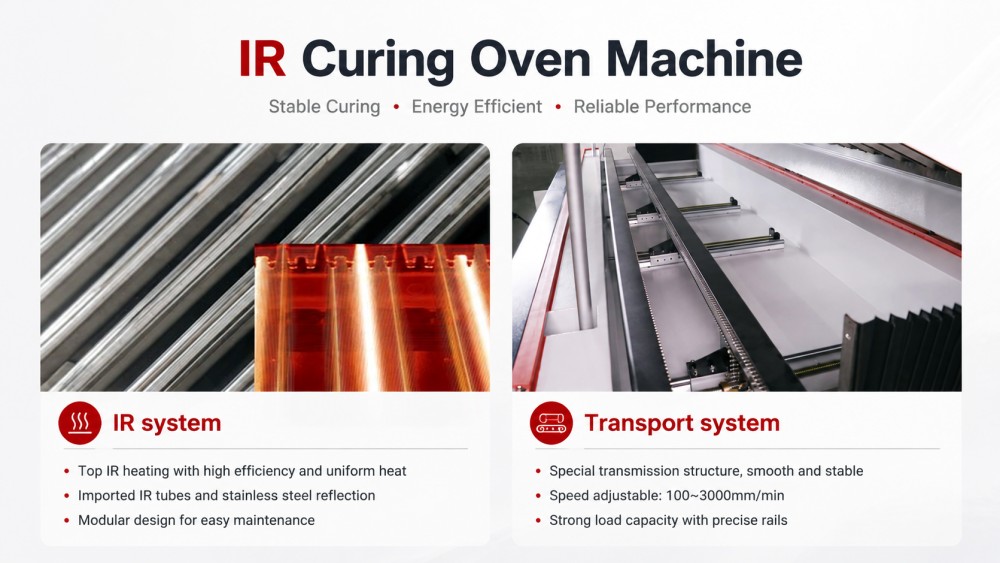

IR System
The IR system delivers top-zone heating with high thermal efficiency and precise temperature control. Imported IR heating pipes and reflective stainless steel flooring optimize heat distribution, reduce energy loss, and maintain uniform temperature across all zones. PID intelligent control automatically adjusts heating, compensating for external variations while keeping internal temperature balanced. Over-temperature protection and solid-state relays enhance operational safety and extend service life. The system ensures rapid warming, accurate curing, and minimal temperature deviation, supporting sensitive adhesives and coatings while preserving PCB integrity.
Transport System
The transport system uses imported motors and speed adjusters to provide smooth and adjustable movement from 100 to 3000mm/min. Hardened and load-bearing treated rails ensure stability and prevent deformation under varying product weights. The system accommodates boards of different sizes and heights up to 460mm and includes optional bottom heating for full-surface curing. Independent cooling zones maintain low PCB temperature on exit. Conveyor design and motorized furnace cover with safety support ensure reliable operation, smooth handling, and minimal downtime during high-throughput production.
| Specifications:
| Item | I.C.T-IR3 | I.C.T-IR4 |
| Transport | Rail | Rail |
| Control System | Touch screen + PLC | Touch screen + PLC |
| Heating Mode | IR (Hot air option) | IR (Hot air option) |
| Conveyor Speed | 100~3000mm/min | 100~3000mm/min |
| Number of Heating Zones | Up3 / Bottom0 | Up4 / Bottom0 |
| Bottom Heating | Option | Option |
| Length of Heating Zones | 2500mm | 3500mm |
| Warming Time | Approx. 15 minute | Approx. 15 minute |
| Power for Warm Up | 15KW | 18KW |
| Power Consumption | 6KW | 8KW |
| Temperature Deviation | ±5℃ | ±5℃ |
| Transport High | 900±20mm | 900±20mm |
| Max PCBA Height | ±100mm | ±100mm |
| Max Width of PCBA | 460mm | 460mm |
| Conveyor Direction | L→R (Option: R→L) | L→R (Option: R→L) |
| Exhaust Volume | 10M⊃3;/min * 2 Exhausts | 10M⊃3;/min * 2 Exhausts |
| Electric Supply | 3phase, 380V, 50/60Hz | 3phase, 380V, 50/60Hz |
| Dimension (LWH) | 300010901380mm | 400010901380mm |
| Weight | Approx. 650KG | Approx. 850KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| PCBA Coating Line Equipment List

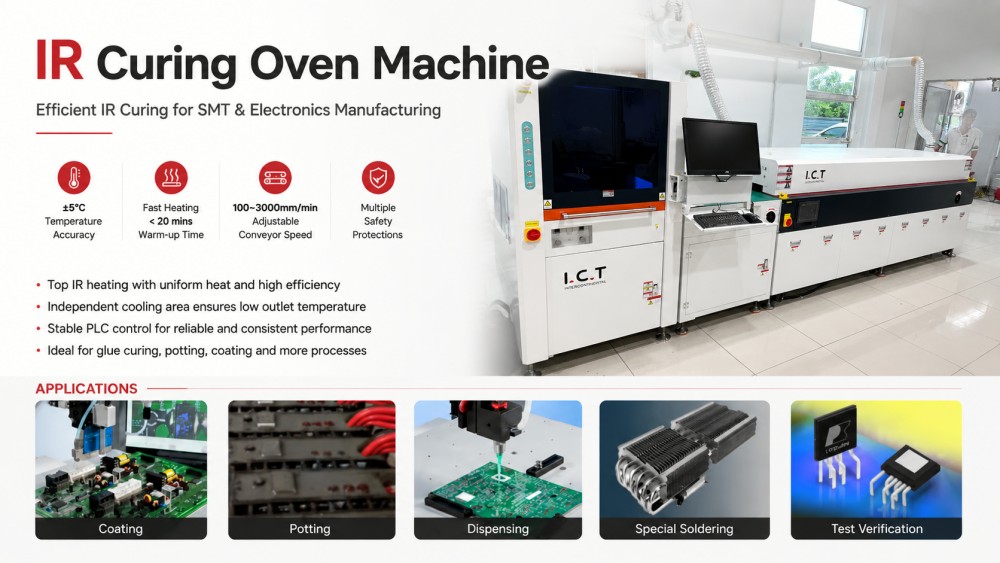

The IR Curing Oven integrates seamlessly with I.C.T’s full coating and dispensing line. Related machines include conformal coating units, jet dispensers, UV/IR curing ovens, PCB conveyors, AOI inspection systems, and depaneling equipment. This integration ensures precise curing, coating protection, and inspection in a continuous workflow. Combined systems help optimize throughput, reduce material waste, and maintain consistent SMT PCB quality. Customers benefit from a connected, end-to-end production line that balances curing, handling, inspection, and post-process operations efficiently.
